產(chǎn)品名稱：
英錐管外螺紋直接頭
產(chǎn)品系列搜索
請選擇您想要尋找的相關產(chǎn)品系列
產(chǎn)品描述

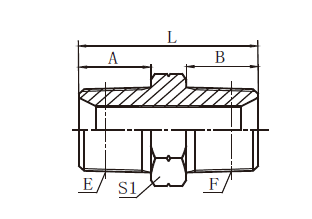

| 訂貨號 | 螺 紋 | 尺 寸 | ||||||||||
| E | F | A | B | L | S1 | |||||||
| A4-04 | R1/4"X19 | R1/4"X19 | 14.5 | 14.5 | 34 | 14 | ||||||
| A4-04-06 | R1/4"X19 | R3/8"X19 | 14.5 | 15 | 35 | 17 | ||||||
| A4-06 | R3/8"X19 | R3/8"X19 | 15 | 15 | 36 | 17 | ||||||
| A4-06-08 | R3/8"X19 | R1/2"X14 | 15 | 20 | 43 | 22 | ||||||
| A4-08 | R1/2"X14 | R1/2"X14 | 20 | 20 | 46 | 22 | ||||||
| A4-08-12 | R1/2"X14 | R3/4"X14 | 20 | 20 | 48 | 27 | ||||||
| A4-12 | R3/4"X14 | R3/4"X14 | 20 | 20 | 48 | 27 | ||||||
| A4-12-16 | R3/4"X14 | R1"X11 | 20 | 25.5 | 55.5 | 36 | ||||||
| A4-16 | R1"X11 | R1"X11 | 25.5 | 25.5 | 61 | 36 | ||||||
| A4-20 | R1.1/4"X11 | R1.1/4"X11 | 26.5 | 26.5 | 65.5 | 46 | ||||||
| A4-20-24 | R1.1/4"X11 | R1.1/2"X11 | 26.5 | 26.5 | 67 | 50 | ||||||
| A4-24 | R1.1/2"X11 | R1.1/2"X11 | 26.5 | 26.5 | 67 | 50 | ||||||
| A4-32 | R2"X11 | R2"X11 | 30 | 30 | 75 | 65 | ||||||
