產品名稱：
英管外螺紋60°內錐 90°彎接頭
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述

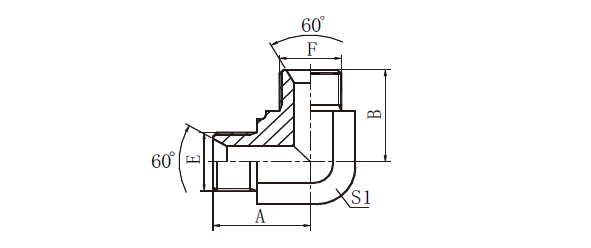

| 訂貨號 | 螺 紋 | 尺 寸 | |||||
| E | F | A | B | S1 | |||
| A3-02/9 | G1/8"X28 | G1/8"X28 | 19.8 | 19.8 | 11 | ||
| A3-02-04/9 | G1/8"X28 | G1/4"X19 | 23 | 25 | 14 | ||
| A3-04/9 | G1/4"X19 | G1/4"X19 | 24.5 | 24.5 | 14 | ||
| A3-04-06/9 | G1/4"X19 | G3/8"X19 | 26.5 | 27.5 | 16 | ||
| A3-06/9 | G3/8"X19 | G3/8"X19 | 27.5 | 27.5 | 16 | ||
| A3-06-08/9 | G3/8"X19 | G1/2"X14 | 31 | 34.5 | 22 | ||
| A3-08/9 | G1/2"X14 | G1/2"X14 | 34.5 | 34.5 | 22 | ||
| A3-08-12/9 | G1/2"X14 | G3/4"X14 | 37.5 | 40 | 27 | ||
| A3-12/9 | G3/4"X14 | G3/4"X14 | 40 | 40 | 27 | ||
| A3-12-16/9 | G3/4"X14 | G1"X11 | 43.5 | 46 | 33 | ||
| A3-16/9 | G1"X11 | G1"X11 | 46 | 46 | 33 | ||
| A3-16-20/9 | G1"X11 | G1.1/4"X11 | 50.5 | 50.5 | 41 | ||
| A3-20/9 | G1.1/4"X11 | G1.1/4"X11 | 50.5 | 50.5 | 41 | ||
| A3-20-24/9 | G1.1/4"X11 | G1.1/2"X11 | 54.5 | 57.5 | 48 | ||
| A3-24/9 | G1.1/2"X11 | G1.1/2"X11 | 57.5 | 57.5 | 48 | ||
| A3-32/9 | G2"X11 | G2"X11 | 68 | 68 | 63 | ||
