首頁 > 產品中心 > 快換接頭 > 快換接頭 > 快速接頭-PLT4系列
·過渡接頭+ ·軟管接頭+ ·套筒+ ·軟管及軟管總成+ ·快換接頭+ ·球閥+ ·管夾+ ·接頭附件-密封件+ ·總成附件+ ·測試接頭+ ·壓力表+ ·閥類+
< >

產品名稱：

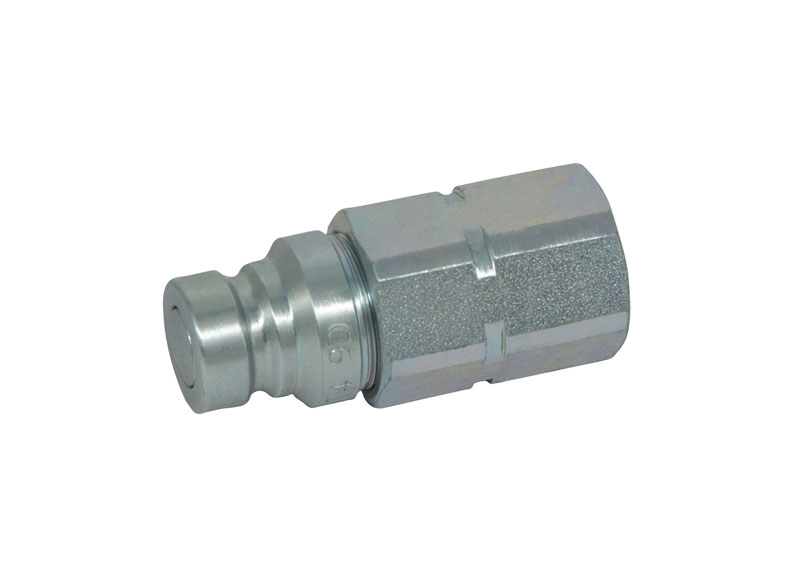

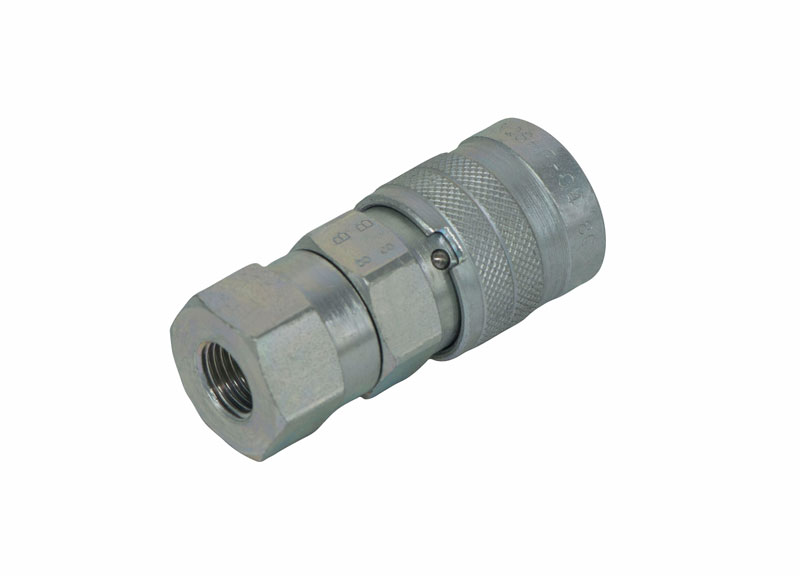

快速接頭-PLT4系列

產品系列搜索

請選擇您想要尋找的相關產品系列

產品描述

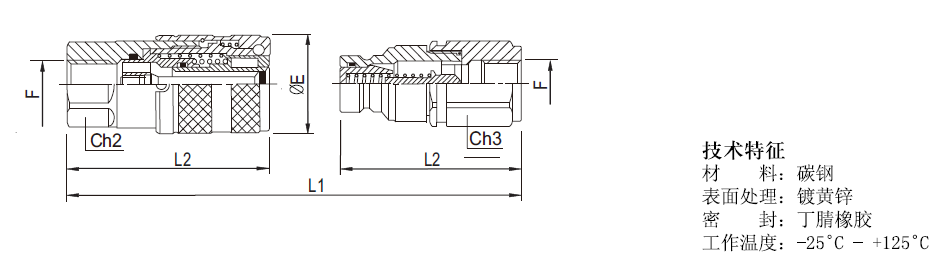

DNPBGUSAISOCH2CH3?EL1L2L3F陰接頭（F)陽接頭（M)
0400251717258448.543.5G 1/8PLT4.0404.112PLT4.0404.113
1/8 NPTPLT4.0404.012PLT4.0404.013
8850.545.57/16 UNFPLT4.0412.032PLT4.0412.033
061046.32222281005952G 1/4PLT4.0606.112PLT4.0606.113
1/4 NPTPLT4.0606.012PLT4.0606.013
G 3/8 PLT4.0610.112PLT4.0610.113
3/8 NPTPLT4.0610.012PLT4.0610.013
9/16 UNFPLT4.0615.032PLT4.0615.033
M16X1.5PLT4.0616.102PLT4.0616.103
M18X1.5PLT4.0618.102PLT4.0618.103
13206103030 321187361G   3/8 PLT4.1310.112PLT4.1310.113
12173643/8 UNFPLT4.1310.012PLT4.1310.013
1187361G 1/2PLT4.1313.112PLT4.1313.113
12173641/2 NPTPLT4.1313.012PLT4.1313.013
11873619/16   UNFPLT4.1315.032PLT4.1315.033
M16X1.5PLT4.1316.102PLT4.1316.103
M18X1.5PLT4.1318.102PLT4.1318.103
3/4 UNFPLT4.1319.032PLT4.1319.033
M22X1.5PLT4.1322.102PLT4.1322.103
2030812.53636381408473G 1/2PLT4.2013.112PLT4.2013.113
14184741/2 NPTPLT4.2013.012PLT4.2013.013
13380703/4 UNFPLT4.2019.032PLT4.2019.033
1428475G 3/4PLT4.2019.112PLT4.2019.113
14284753/4 NPTPLT4.2019.012PLT4.2019.013
1378371M22X1.5PLT4.2022.102PLT4.2022.103
14082757/8 UNFPLT4.2023.032PLT4.2023.033
1428475M26X1.5PLT4.2026.102PLT4.2026.103
1 1/16UNFPLT4.2027.032PLT4.2027.033
224A10163636421378273G 1/2PLT4.2213.112PLT4.2213.113
1/2 NPTPLT4.2213.012PLT4.2213.013
13482703/4 UNFPLT4.2219.032PLT4.2219.033
1438675G 3/4PLT4.2219.112PLT4.2219.113



3/4 NPTPLT4.2219.012PLT4.2219.013
1358271M22X1.5PLT4.2222.102PLT4.2222.103
14386757/8 UNFPLT4.2222.032PLT4.2222.033
M26X1.5PLT4.2226.102PLT4.2226.103
1 1/16UNFPLT4.2227.032PLT4.2227.033
25412194141481599586G 3/4PLT4.2519.112PLT4.2519.113
3/4 NPTPLT4.2519.012PLT4.2519.013
1629886G 1PLT4.2525.112PLT4.2525.113
1 NPTPLT4.2525.012PLT4.2525.013
16095871 5/16 UNFPLT4.2533.032PLT4.2533.033
305162555555517711090G1 1/4PLT4.3031.112PLT4.3031.113
1 1/4 NPTPLT4.3031.012PLT4.3031.013
1 5/8 UNFPLT4.3041.032PLT4.3041.033

技術參數

DNPBGUSAISODN(mm)最大工作壓力公稱流量（l/m)陽接頭   最小爆破壓力  陰接頭   最小爆破壓力 組件  最小爆破壓力
0400254500630020003000
061046.36.235018195016502300
13206108.735038160014501420
2030812.51135075175015001650
224A101612.8350100165015001600
254121915350140140014001400
305162518350200140014001500

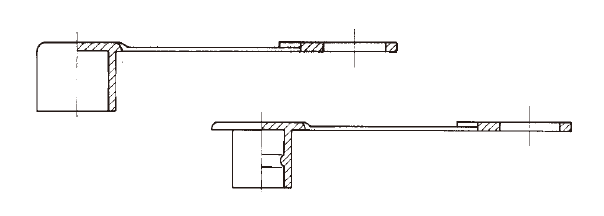

附件


DNP防塵塞防塵帽顏色材料DNP自動保護帽顏色材料
06SPLT.06002SPLT.06003紅聚氯乙烯13SPLT.13302紅尼龍
13SPLT.13002SPLT.13003紅聚氯乙烯13SPLT.13312黃尼龍
20SPLT.20002SPLT.20003紅聚氯乙烯13SPLT.13322綠尼龍
25SPLT.25002SPLT.25003紅聚氯乙烯13SPLT.13332藍尼龍
13SPLT.13342黑尼龍
20SPLV.13302黑尼龍
20SPLV.13312黃尼龍
20SPLV.13322綠尼龍
20SPLV.13332藍尼龍
20SPLV.13342紅尼龍
