產品名稱：
JIC內螺紋74°內錐面 90°彎接頭
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述

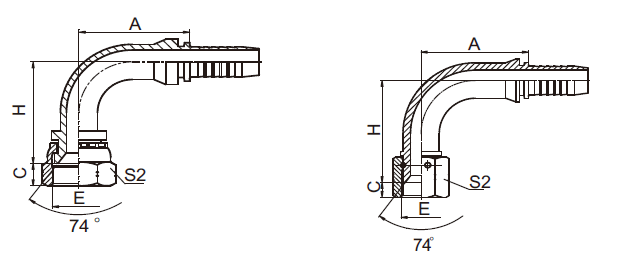

| 訂貨號 | 螺紋E | 膠 管 | 尺 寸 | ||||||||
| 公稱內徑 | 標號 | A | C | H | S2 | ||||||
| JFC-04-04 | 7/16"X20 | 6 | 4 | 30 | 9 | 33.5 | 15 | ||||
| JFC-05-04 | 1/2"X20 | 6 | 4 | 30 | 9.5 | 34 | 17 | ||||
| JFC-05-05 | 1/2"X20 | 8 | 5 | 33 | 9.5 | 37 | 17 | ||||
| JFC-05-06 | 1/2"X20 | 10 | 6 | 35.3 | 9.5 | 39.3 | 17 | ||||
| JFC-06-04 | 9/16"X18 | 6 | 4 | 30 | 10.5 | 34 | 19 | ||||
| JFC-06-05 | 9/16"X18 | 8 | 5 | 33 | 10.5 | 37 | 19 | ||||
| JFC-06-06 | 9/16"X18 | 10 | 6 | 35.3 | 10.5 | 39.3 | 19 | ||||
| JFC-06-08 | 9/16"X18 | 12 | 8 | 35.8 | 10.5 | 39.8 | 19 | ||||
| JFC-08-06 | 3/4"X16 | 10 | 6 | 35.3 | 11 | 41.3 | 24 | ||||
| JFC-08-08 | 3/4"X16 | 12 | 8 | 41 | 11 | 47.5 | 24 | ||||
| JFC-08-10 | 3/4"X16 | 16 | 10 | 49 | 11 | 47.5 | 24 | ||||
| JFC-10-08 | 7/8"X14 | 12 | 8 | 41 | 13 | 48 | 27 | ||||
| JFC-10-10 | 7/8"X14 | 16 | 10 | 56 | 13 | 52.5 | 27 | ||||
| JFC-10-12 | 7/8"X14 | 20 | 12 | 64.9 | 13 | 62 | 27 | ||||
| JFC-12-08 | 1.1/16"X12 | 12 | 8 | 41 | 15 | 49.5 | 32 | ||||
| JFC-12-10 | 1.1/16"X12 | 16 | 10 | 56 | 15 | 54 | 32 | ||||
| JFC-12-12 | 1.1/16"X12 | 20 | 12 | 65.5 | 15 | 63.5 | 32 | ||||
| JFC-12-16 | 1.1/16"X12 | 25 | 16 | 74 | 15 | 63.5 | 32 | ||||
| JFC-16-12 | 1.5/16"X12 | 20 | 12 | 65.5 | 16 | 63.5 | 41 | ||||
| JFC-16-16 | 1.5/16"X12 | 25 | 16 | 76.7 | 16 | 70 | 41 | ||||
| JFC-20-20W | 1.5/8"X12 | 32 | 20 | 91.5 | 17 | 80.5 | 50 | ||||
| JFC-24-20W | 1.7/8"X12 | 32 | 20 | 91.5 | 20 | 80.5 | 55 | ||||
| JFC-24-24W | 1.7/8"X12 | 40 | 24 | 109.4 | 20 | 94 | 55 | ||||
| JFC-32-32W | 2.1/2"X12 | 50 | 32 | 133.1 | 23.5 | 121.8 | 75 | ||||
