產品名稱：
JIC外螺紋/公制外螺紋 90°彎接頭
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述

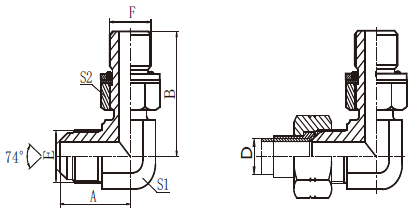

| 訂貨號 | 螺 紋 | O形圈 | 尺 寸 | ||||
| E | F | F端 | A | B | S1 | S2 | |
| AJ7-04-12/9 | 7/16"X20 | M12X1.5 | O09.3X2.4 | 24.5 | 30.3 | 11 | 17 |
| AJ7-04-14/9 | 7/16"X20 | M14X1.5 | O11.3X2.4 | 26.6 | 32 | 14 | 19 |
| AJ7-05-12/9 | 1/2"X20 | M12X1.5 | O09.3X2.4 | 26.5 | 32 | 14 | 17 |
| AJ7-05-14/9 | 1/2"X20 | M14X1.5 | O11.3X2.4 | 26.5 | 32 | 14 | 19 |
| AJ7-06-14/9 | 9/16"X18 | M14X1.5 | O11.3X2.4 | 26.9 | 32 | 14 | 19 |
| AJ7-06-16/9 | 9/16"X18 | M16X1.5 | O13.3X2.4 | 28 | 34.8 | 16 | 22 |
| AJ7-06-18/9 | 9/16"X18 | M18X1.5 | O15.3X2.4 | 30 | 37 | 19 | 24 |
| AJ7-08-16/9 | 3/4"X16 | M16X1.5 | O13.3X2.4 | 32 | 38 | 19 | 22 |
| AJ7-08-18/9 | 3/4"X16 | M18X1.5 | O15.3X2.4 | 33 | 38 | 19 | 24 |
| AJ7-10-22/9 | 7/8"X14 | M22X1.5 | O19.3X2.4 | 38 | 42.5 | 22 | 27 |
| AJ7-12-22/9 | 1.1/16"X12 | M22X1.5 | O19.3X2.4 | 45 | 44 | 27 | 27 |
| AJ7-12-27/9 | 1.1/16"X12 | M27X2 | O23.5X3.0 | 44.2 | 48.5 | 27 | 32 |
| AJ7-16-33/9 | 1.5/16"X12 | M33X2 | O29.5X3.0 | 49 | 52.5 | 33 | 41 |
| AJ7-20-42/9 | 1.5/8"X12 | M42X2 | O38.5X3.0 | 55.5 | 57.2 | 41 | 50 |
| AJ7-24-48/9 | 1.7/8"X12 | M48X2 | O44.5X3.0 | 62.5 | 62.5 | 48 | 55 |
注：螺母及襯套需另行訂貨，配用螺母及襯套分別選用SJN、SJS。
