產品名稱：
美制JIC外螺紋/英管外螺紋O形圈 45°彎接頭
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述

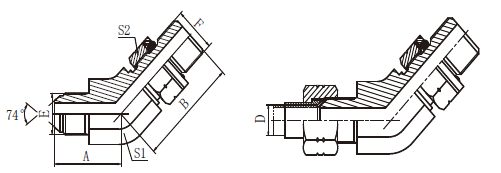

| 訂貨號 | 螺 紋 | O形圈 | 尺 寸 | ||||
| E | F | F端 | A | B | S1 | S2 | |
| AJ5-04/4 | 7/16"X20 | G1/4"X19 | O111 | 21 | 28 | 14 | 19 |
| AJ5-06-04/4 | 9/16"X18 | G1/4"X19 | O111 | 22 | 28 | 14 | 19 |
| AJ5-06/4 | 9/16"X18 | G3/8"X19 | O113 | 23 | 32 | 19 | 22 |
| AJ5-08-06/4 | 3/4"X16 | G3/8"X19 | O113 | 25.8 | 32 | 19 | 22 |
| AJ5-08/4 | 3/4"X16 | G1/2"X14 | O115 | 27.5 | 36 | 22 | 27 |
| AJ5-10-08/4 | 7/8"X14 | G1/2"X14 | O115 | 29.5 | 38 | 22 | 27 |
| AJ5-12-16/4 | 1.1/16"X12 | G1"X11 | O217 | 37.5 | 44 | 33 | 41 |
| AJ5-12/4 | 1.1/16"X12 | G3/4"X14 | O119 | 34 | 42 | 27 | 32 |
| AJ5-16-12/4 | 1.5/16"X12 | G3/4"X14 | O119 | 38 | 44 | 33 | 32 |
| AJ5-16/4 | 1.5/16"X12 | G1"X11 | O217 | 38 | 44 | 33 | 41 |
| AJ5-20/4 | 1.5/8"X12 | G1.1/4"X11 | O222 | 43 | 47.5 | 41 | 50 |
| AJ5-24/4 | 1.7/8"X12 | G1.1/2"X11 | O224 | 49 | 51.5 | 48 | 55 |
注：螺母及襯套需另行訂貨，配用螺母及襯套分別選用SJN、SJS。
